Description
The drywall mounting plate is designed to “mud” directly into drywall without a visible cover plate or trim. The alternate mounting plate is designed to be used on surfaces other than drywall - for example: millwork, glass, stone, etc. The mounting plate will accommodate a wide range of finish material thicknesses and accept any of the 22 System operative devices.
A removal tool is required for each 22 System installation (sold separately).
Specs
- 1x - Single Mounting Plate
Installation

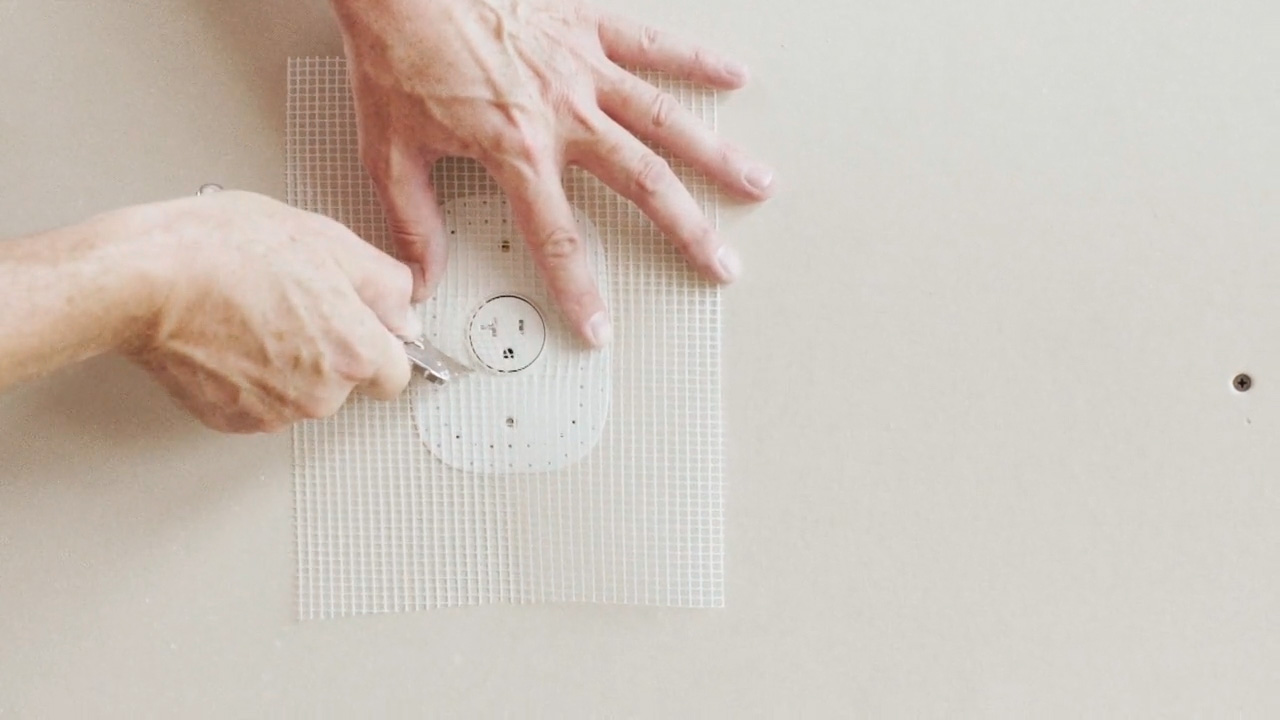

Drywall Installation Video
00:01:00

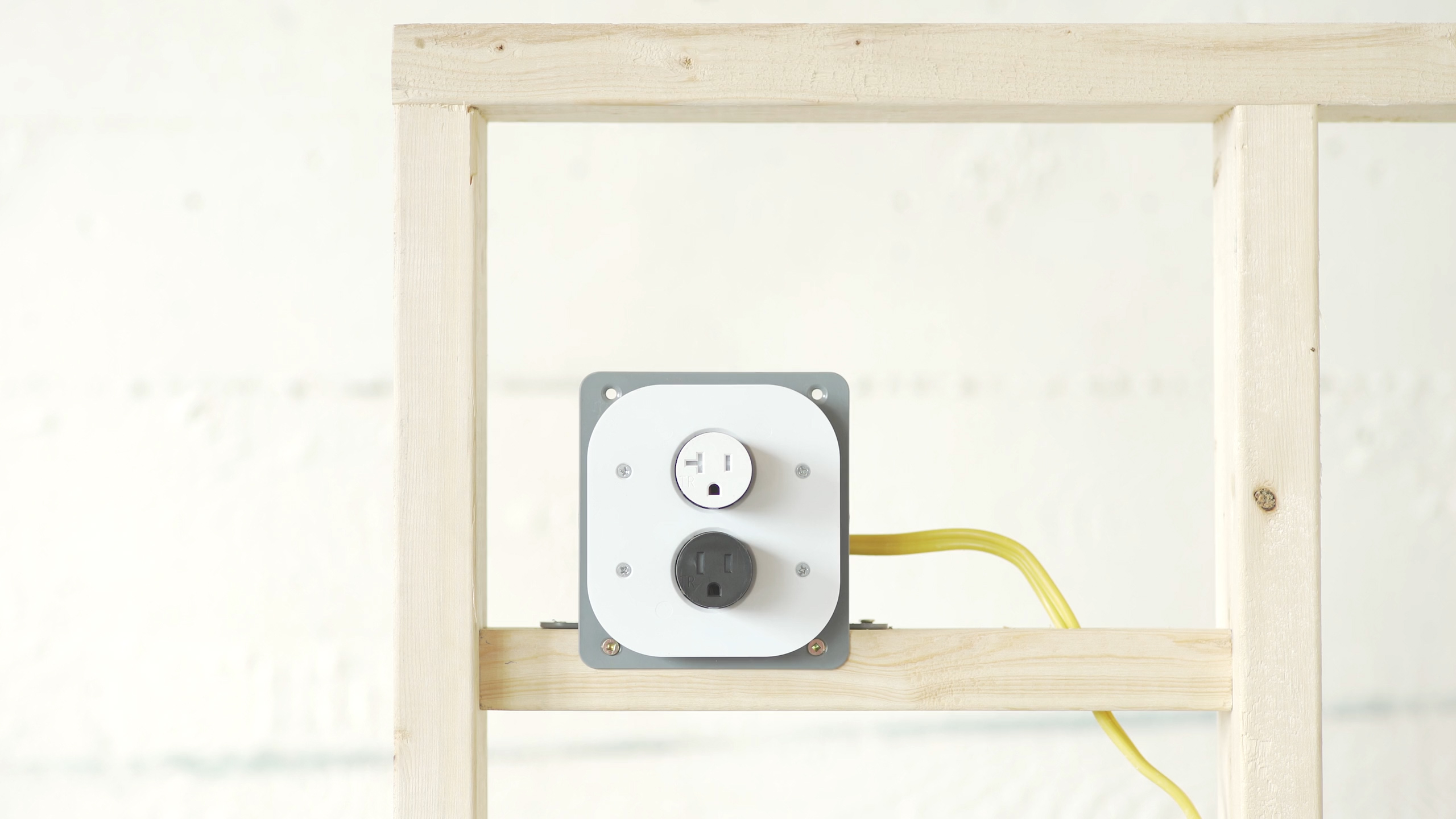

Alternate Material Installation
00:01:00
Materials

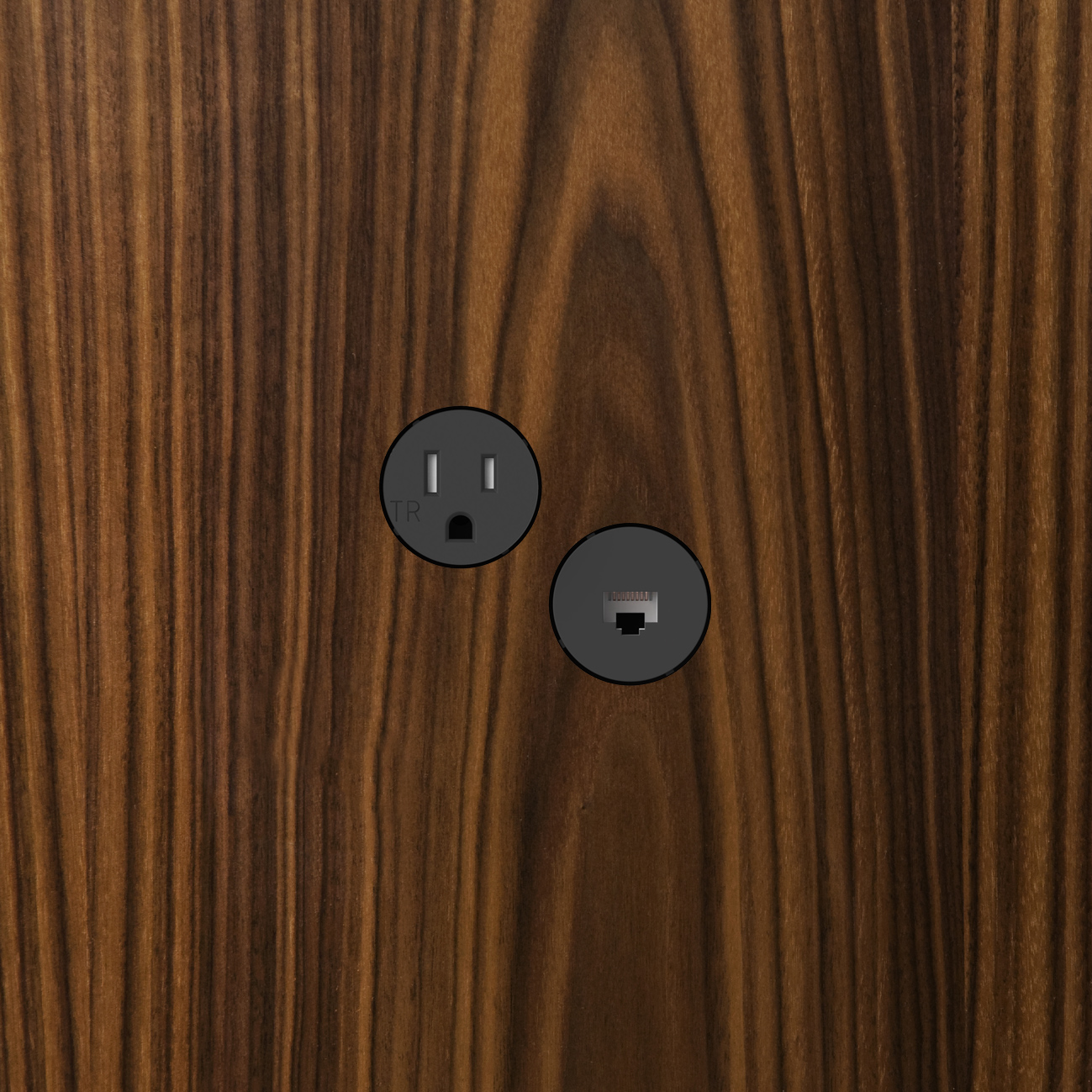

22 System may be mudded directly into drywall or set flush into millwork, marble, glass or any other surface.
Recommended Add-ons
Success! You just added
Single Plate
$60 USD
Hold on! Don’t forget.
Do you have a Removal Tool?
Please note that a Removal Tool is required for all 22 System installations. If you don't already have one, please add one to your cart before you checkout. Thank you!
