Description
The drywall mounting plate is designed to “mud” directly into drywall without a visible cover plate or trim. The alternate mounting plate is designed to be used on surfaces other than drywall - for example: millwork, glass, stone, etc. The mounting plate will accommodate a wide range of finish material thicknesses and accept any of the 22 System operative components.
An installation tool is required for each 22 System installation (sold separately).
Specs
- 1x - Double Linear Mounting Plate/Diagonal Mounting Plate
Installation

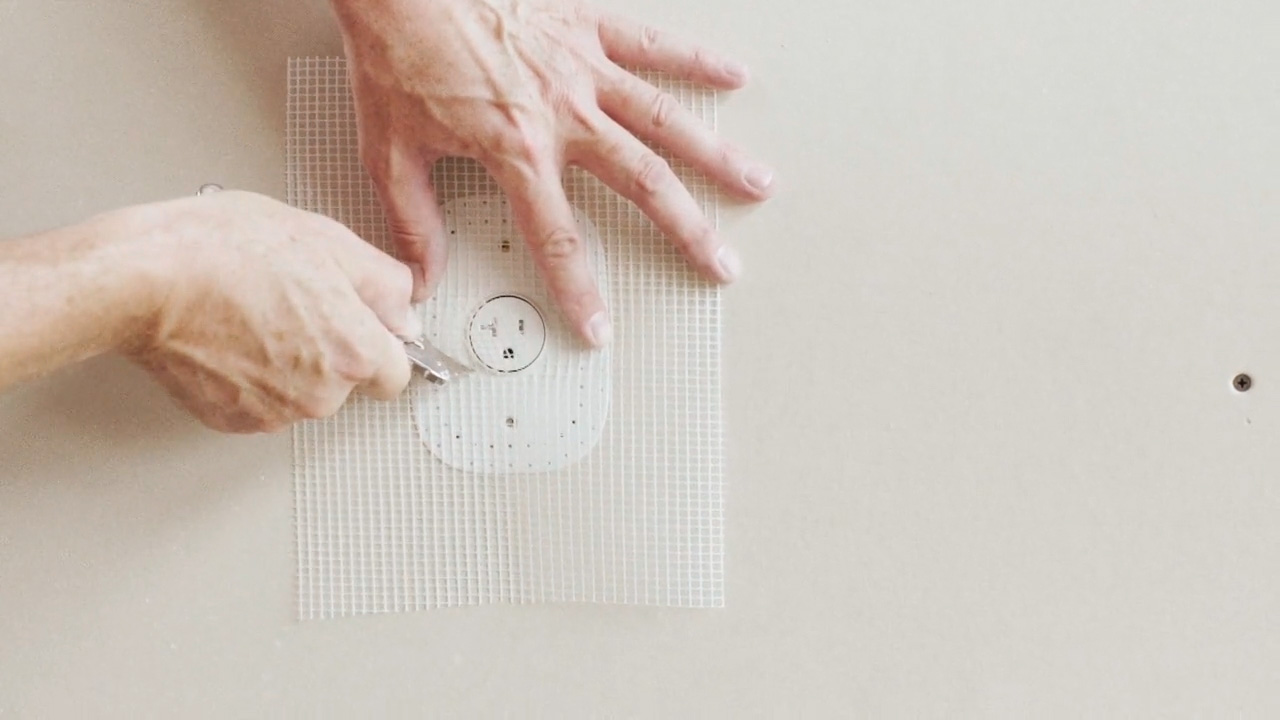

Drywall Installation Video
00:05:23

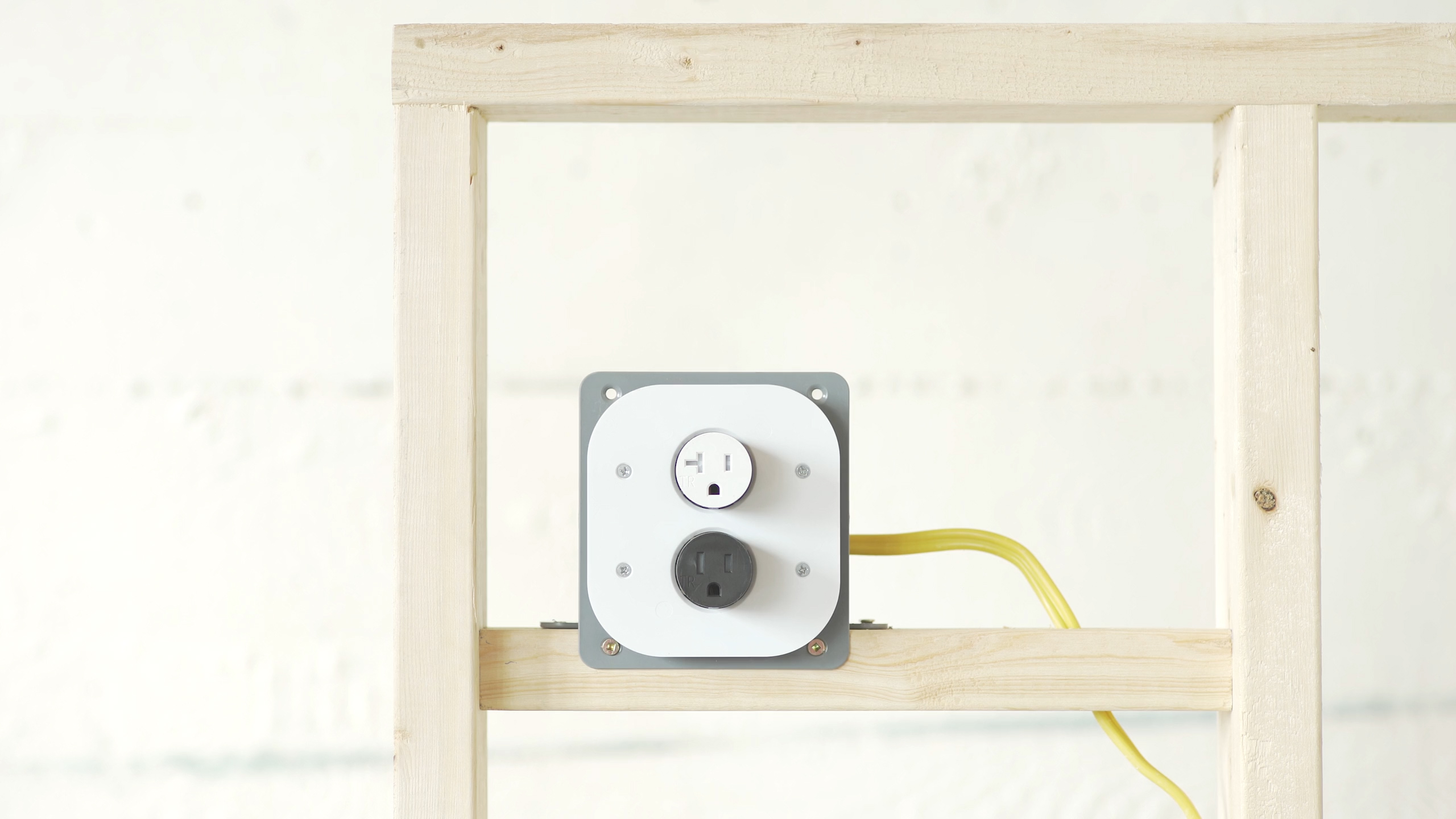

Alternate Material Installation
00:01:48
Materials
22 System may be mudded directly into drywall or set flush into millwork, marble, glass or any other surface.
