22 System is a comprehensive suite of UL certified electrical wall accessories available in multiple colours and configurations.

The 22 System utilizes standard junction boxes and may be mudded directly into drywall or set flush into millwork, marble, glass or any other surface.

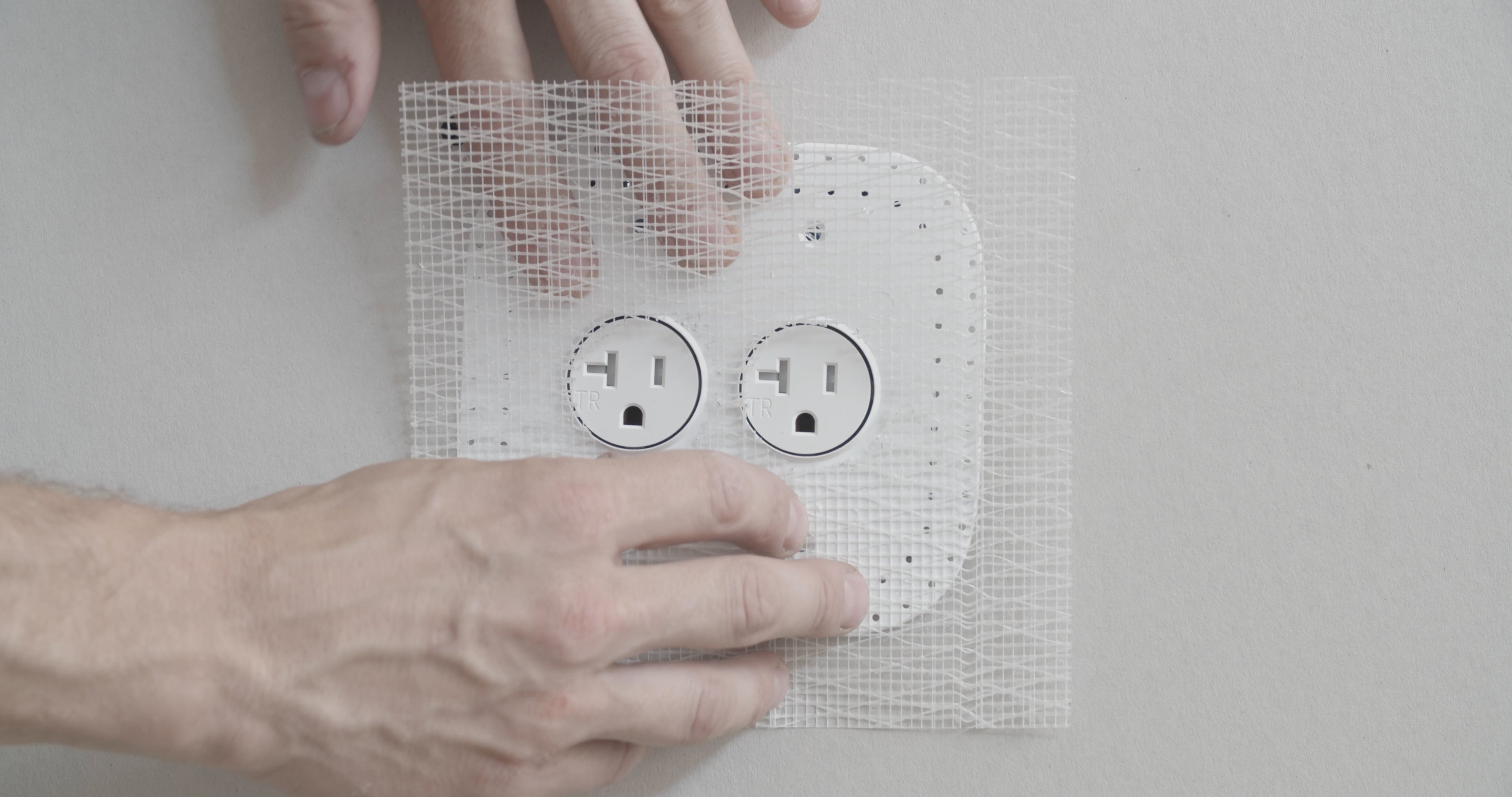

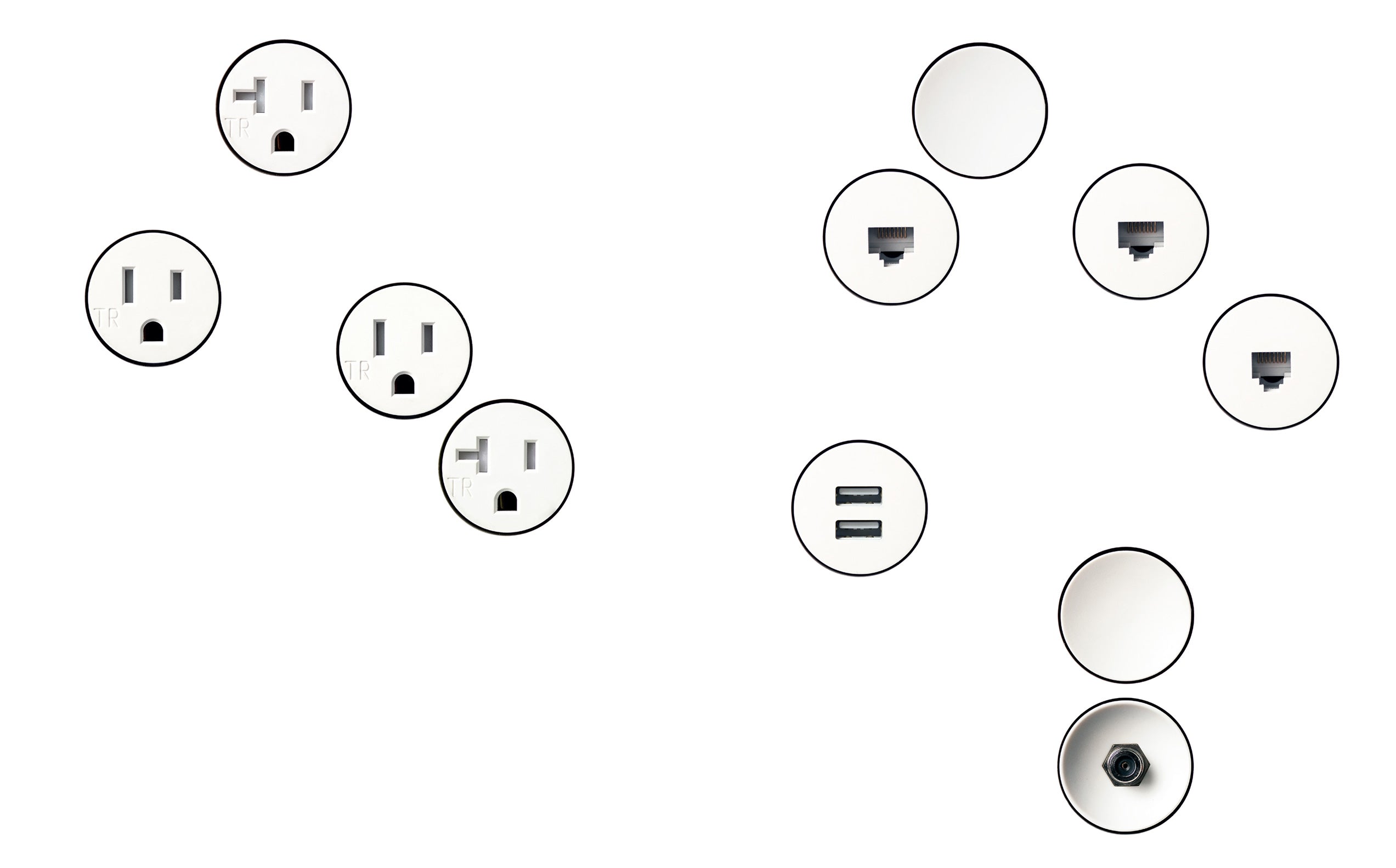

22 Drywall allows our operative components to snap into a receiving cover plate that is mudded directly into the drywall. The cylindrical-shaped system allows a variety of components to be interchangeable in our plate system including plugs, switches, data and communication ports, USB, HDMI and keypad controls.

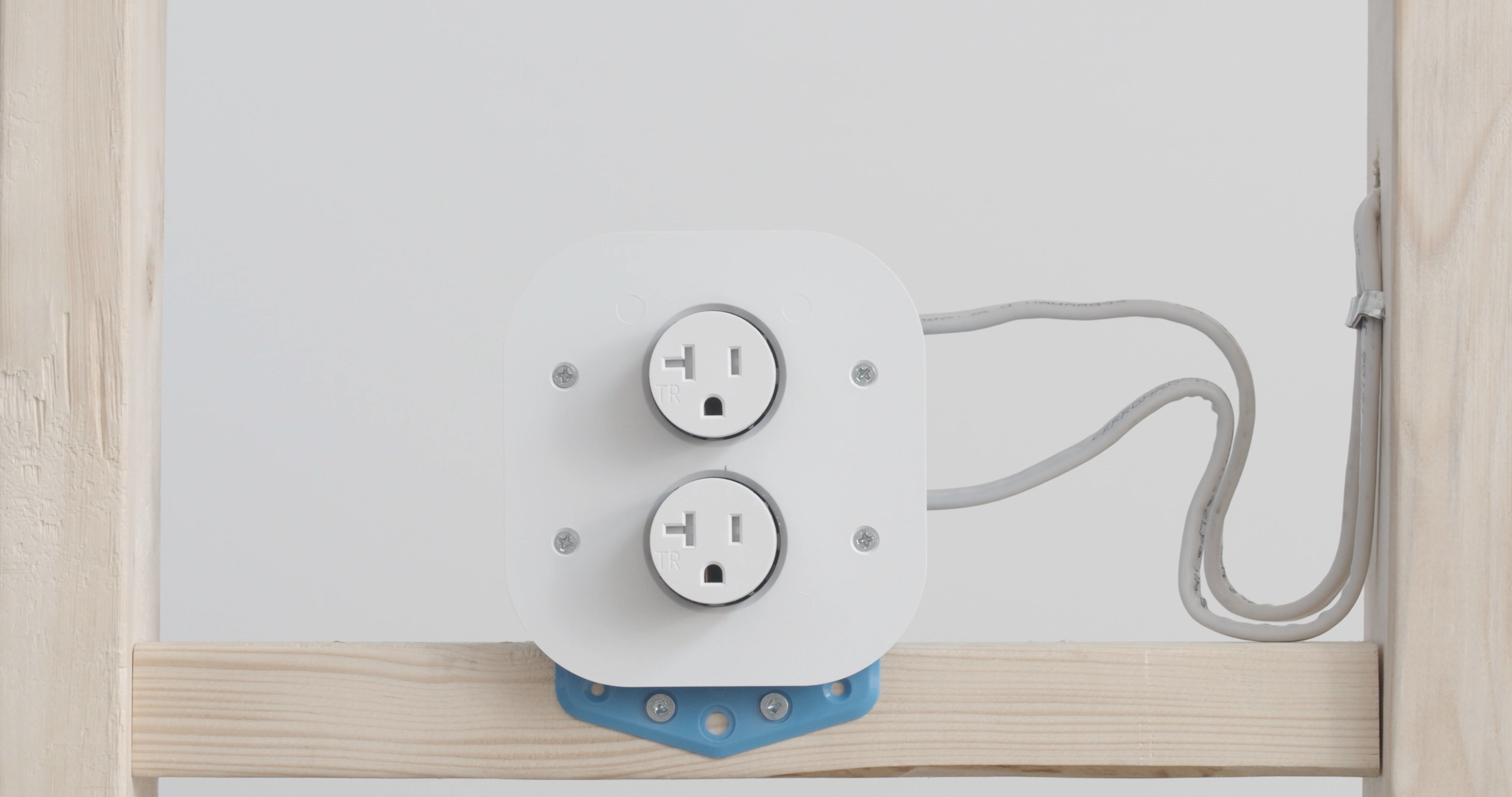

22 Alternative allows the same suite of components to snap into a receiving plate installed behind a variety of finish materials including stone, millwork, tile, glass and others.

The complete assembly results in operative components that sit flush with the surrounding wall surface without visible fasteners or cover plates and without a proprietary junction box or house wiring system. To remove or replace the cylindrically shaped components, a special tool is required.

The 22 System is rated to UL standards 498 and 514D. US Utility Patents 7,956,295 and 8,232,482.

Installation

A snap fit barrel system allows components to be inserted into a receiving system mudded directly into drywall, or set into a finish material. The complete assembly results in components that sit flush with the surrounding wall surface, without visible cover plates.

Play Icon Play Icon

Drywall Installation Video

00:02:36

Drywall installation instruction

Play Icon Play Icon

Alternate Installation Video

00:01:52

Alternate material installation instruction

Materials

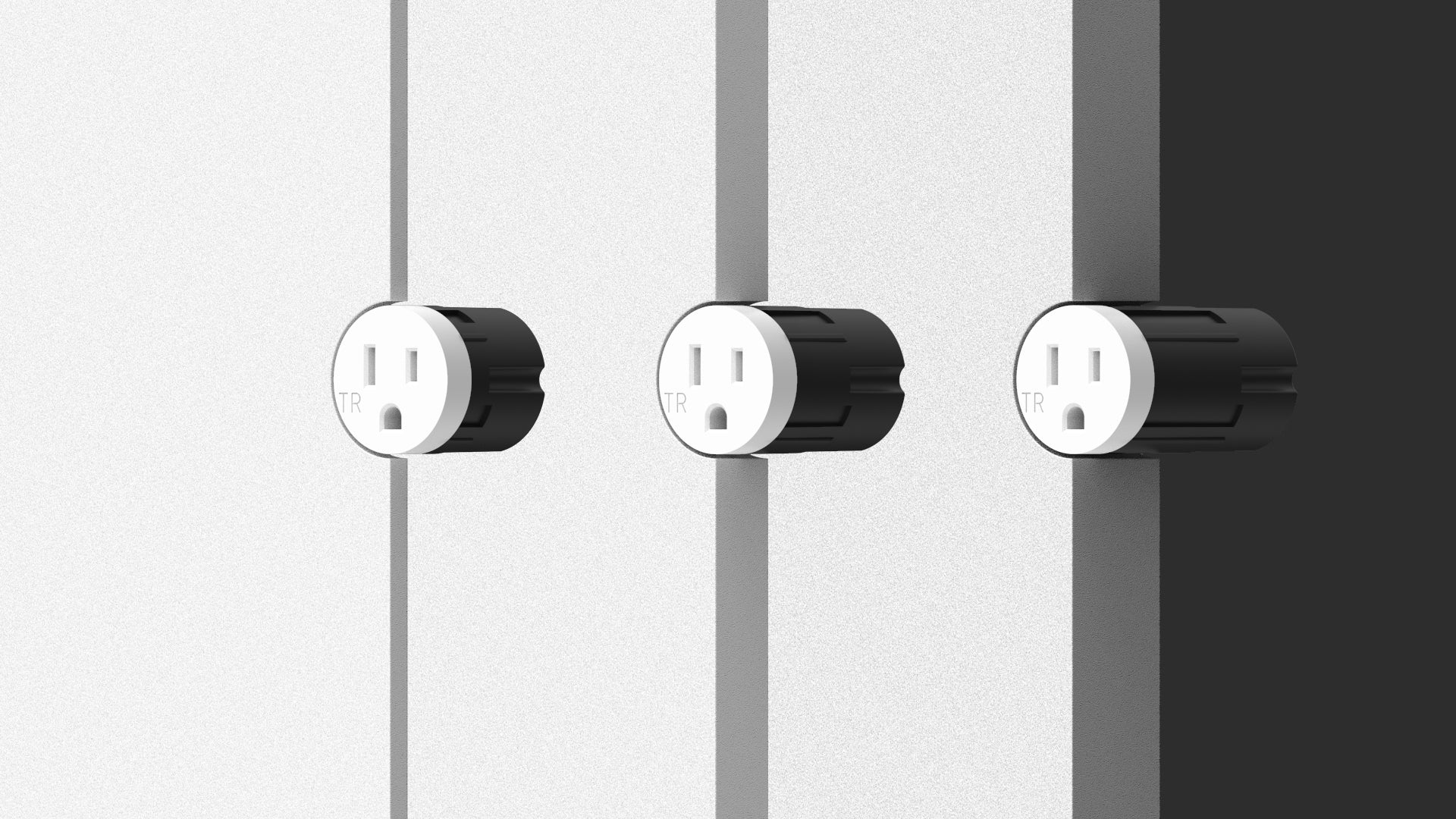

22 System can be mudded directly into drywall or set flush into millwork, marble, glass or any other mounting surface.

  • Millwork
  • Tile
  • Stone
  • Drywall

Colour

Components are available in three colours: white, black and almond. Custom colours and finish options are also available for larger orders, please contact us to discuss your bespoke request.

Configuration

Double kits are available in linear or diagonal configurations, and can be rotated to suit.

Single Kits

Single kits come with a mounting plate and one operative component.

An installation tool is required for each 22 System project (sold separately).

Double Kits

Double kits come with a double linear or diagonal mounting plate and two operative components.

An installation tool is required for each 22 System project (sold separately).

Choose from these popular kits or visit our Parts section to build your own.

Certifications

Certified to UL standards 498 and 514D.

Resources

22 System technical resources including product overview and CAD Library.
