Description
The single HDMI kit contains one HDMI component and one single mounting plate. The HDMI is available in three barrel lengths (short, medium, or long). Mounting plates are available for drywall only applications or alternate material (solid surface) applications.
An installation tool is required for each 22 System installation (sold separately).
Specs
- 1x - Single Mounting Plate
- 1x - HDMI
Installation

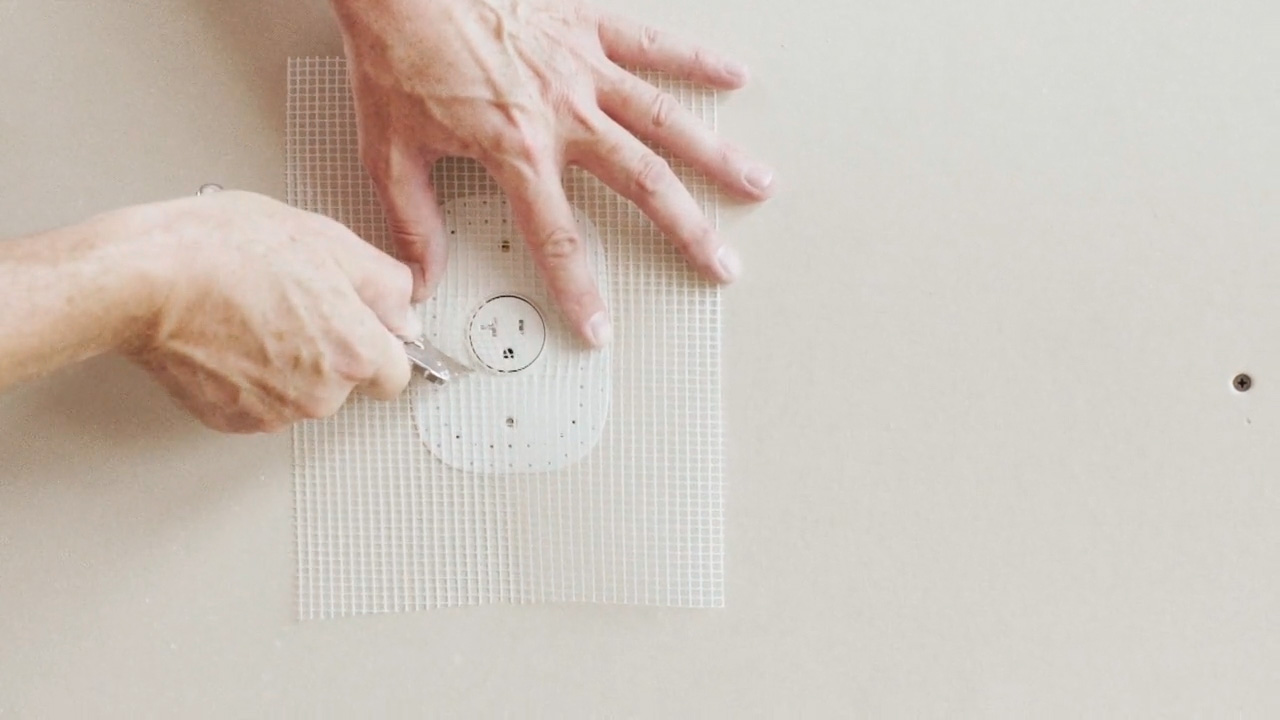

Drywall Installation Video
00:02:37

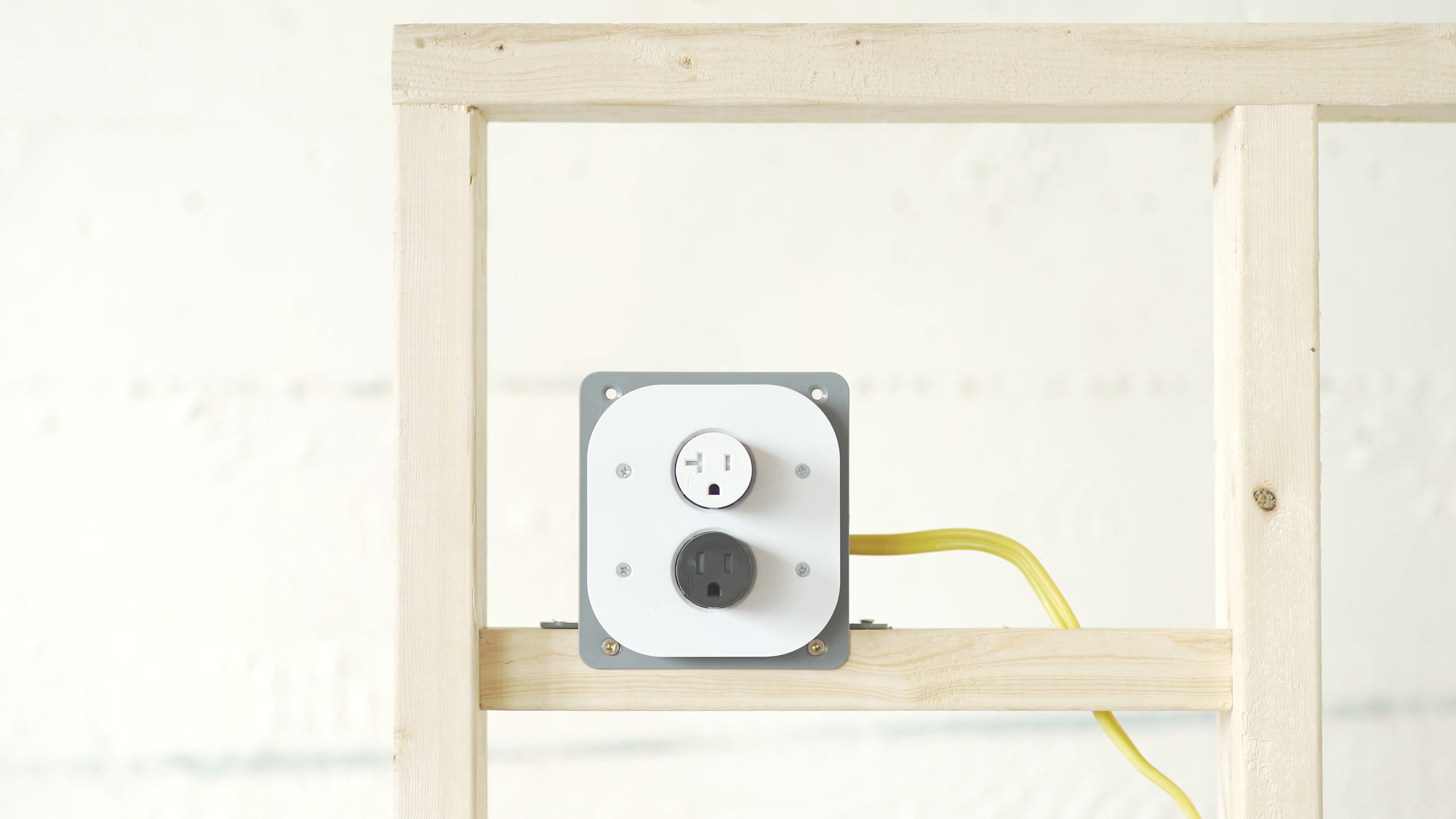

Alternate Material Installation Video
00:01:52
Materials
22 System may be mudded directly into drywall or set flush into millwork, marble, glass or any other surface.
